Livox Laser Simulation
A package to provide plug-in for Livox Series LiDAR.
Requirements
- ROS(=Melodic)
- Gazebo (= 9.x, http://gazebosim.org/)
- Ubuntu(=18.04)
Results

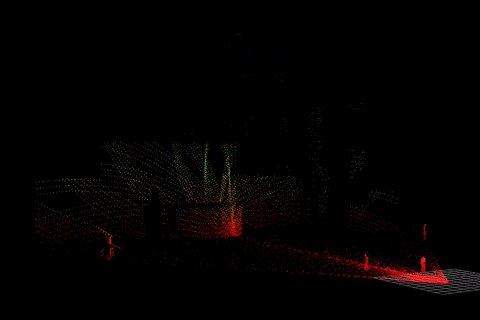

- avia

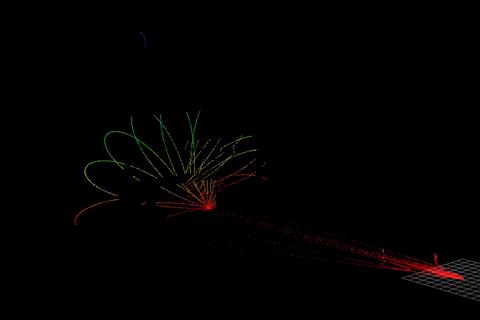

- mid40

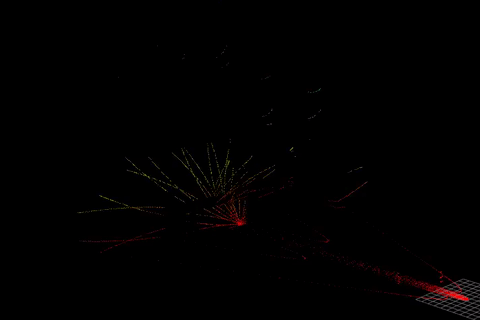

- mid70

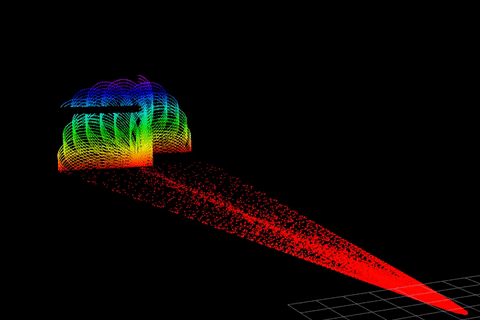

- tele

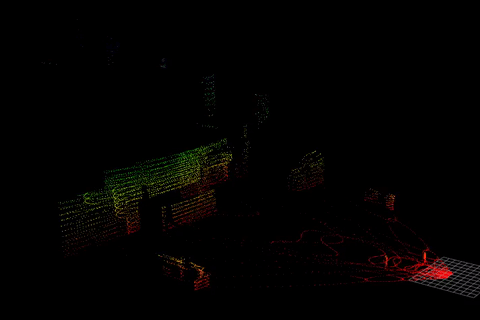

- horizon
Usage
Note that the version of gazebo in main branch is gazebo 9.18. If you use gazebo 7, checkout to "gazebo7" branch.
Before you write your urdf file by using this plugin, catkin_make/catkin build is needed.
A simple demo is shown in livox_simulation.launch
Run
roslaunch livox_laser_simulation livox_simulation.launch
to see.
We can choose the lidar model by selecting different CSV file in scan_mode dir from changing the launch file:
- HAP.csv
- mid360.csv
- avia.csv
- horizon.csv
- mid40.csv
- mid70.csv
- tele.csv
Parameters(only for display , and example by avia)
- laser_min_range: 0.1 // min detection range
- laser_max_range: 200.0 // max detection range
- horizontal_fov: 70.4 //°
- vertical_fov: 77.2 //°
- ros_topic: scan // topic in ros
- samples: 24000 // number of points in each scan loop
- downsample: 1 // we can increment this para to decrease the consumption
